تفاصيل المنتج
Place of Origin: China
اسم العلامة التجارية: 1stess
إصدار الشهادات: LVD
Model Number: EnerArk2.0-M
الوثيقة: Specification EnerArk 2.0 -...ld.pdf
شروط الدفع والشحن
Minimum Order Quantity: 1 piece
الأسعار: negotiable
Packaging Details: container
Delivery Time: 45-60 days
Supply Ability: 10 containers per month
Operating Temperature: |
-20°C To 50°C |
Certifications: |
IEC,UN,UL |
Battery Type: |
LiFePO4 |
IP protection: |
IP55 |
Installation: |
Indoor Or Outdoor |
Application: |
Industrial And Commerical |
Warranty: |
5 Years |
Capacity: |
107.52KWH-125.44KWH |
Operating Temperature: |
-20°C To 50°C |
Certifications: |
IEC,UN,UL |
Battery Type: |
LiFePO4 |
IP protection: |
IP55 |
Installation: |
Indoor Or Outdoor |
Application: |
Industrial And Commerical |
Warranty: |
5 Years |
Capacity: |
107.52KWH-125.44KWH |
| Operating Temperature | -20°C To 50°C |
| Certifications | IEC, UN, UL |
| Battery Type | LiFePO4 |
| IP Protection | IP55 |
| Installation | Indoor Or Outdoor |
| Application | Industrial And Commercial |
| Warranty | 5 Years |
| Capacity | 107.52KWH-125.44KWH |
| Model | EnerArk2.0-NBN-P50 | EnerArk2.0-NBN-P100 |
|---|---|---|
| DC Side Parameters | ||
| Cell type | LFP-280Ah | |
| Module model | IP20S | |
| Battery capacity range | 143.36kWh~215kWh | 215kWh |
| AC On-Grid Side Parameters | ||
| Grid connection type | 3P4W | |
| Charging/discharging power | 50kW | 100kW |
| Rated grid voltage | AC 400V±15% | |
| Frequency range | 45Hz~55Hz | |
| Rated AC output current | 72A | 144A |
| Power factor | 0.8(Leading)~0.8(Lagging) | |
| Harmonics | ≤3%(at rated power) | |
| AC Off-Grid Side Parameters | ||
| Load type | 3P4W | |
| Rated output power | 50kW | 100kW |
| Rated output voltage | AC400V±1% | |
| Rated output frequency | 50Hz | |
| Rated current | 72A | 144A |
| Frequency accuracy | 0.2Hz | |
| General Parameters | ||
| Dimensions (W*H*D) | 1900mm*2100mm*1330mm | |
| Packing size (W*H*D) | 2100mm*2244mm*1500mm | |
| Maximum weight | 2500kg | |
| Degree of protection | IP55(Battery Cabinet)IP34(Electrical Cabinet) | |
| Cooling method type | Battery Cabinet (air conditioner) & Electrical Cabinet (forced air cooling) | |
| Fire fighting system | FM200 automatic fire extinguishing | |
| Anti-corrosion grade | C3 | |
| Relative humidity | 0-95%(non-condensing) | |
| Operating temperature | -20℃~50℃ | |
| Altitude | <2000m | |
| Noise level | ≤75dB | |
| Communication interface | RS485, Ethernet | |
| Communication protocol | Modbus RTU, Modbus TCP/IP | |
| Product standard warranty | 5 years, 6000 cycles(0.5C, 95%DOD, EOL:70%) | |
| PV Side Parameters (Optional) | ||
| Maximum PV input power | 30kW/60kW/90kW/120kW | |
| MPPT voltage range | 200V-850V | |
| Number of MPPTs | 1/1/2/2 | |
| Number of PV inputs | 1/1/2/2 | |
| Maximum input current | 100A/200A/300A/400A | |
| Certifications | CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A | |

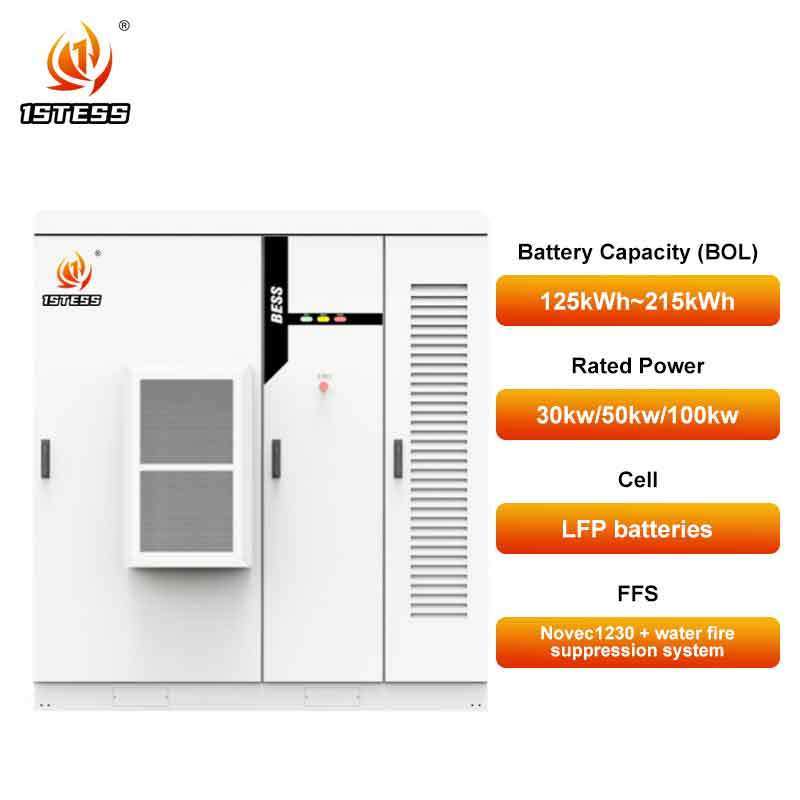

The EnerArk-2.0 is a compact, plug-and-play battery energy storage system designed for easy transportation, installation, and maintenance. This all-in-one system integrates PCS, batteries, BMS, EMS, MPPT, automatic fire control, and temperature control systems into a single solution.
Featuring high-performance EV-grade LiFePO4 batteries, the system provides four layers of safety protection with intelligent BMS design for maximum reliability. The synergistic combination of components and unique design enables efficient charging and discharging for diverse applications, delivering high energy density and extended battery life for optimal LCOs (Levelized Cost of Storage).
The system supports both AC and DC coupling applications, offering seamless integration for commercial and industrial energy storage projects of all scales.
